Product Details

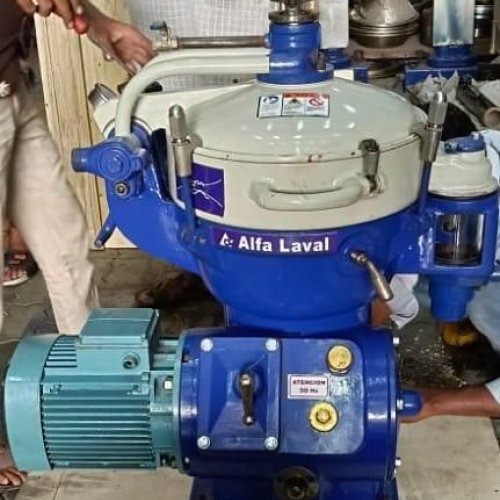

The MAB 206 is designed for the centrifugal separation of sludge and water from mineral oils (diesel, light fuel oils, and lubricating oils). It operates as a purifier (removing water and solids) or a clarifier (removing only solids).
Key Features & Benefits-
High Efficiency: Uses centrifugal force to remove impurities down to very small micron levels.
-
Versatile Application: Ideal for marine engines, power plants, and industrial oil workshops.
-
Manual Cleaning: It is a "solid-wall" bowl machine, meaning the sludge is collected in the bowl and cleaned manually during maintenance.
-
Robust Build: The frame is high-quality cast iron, while the internal bowl components and disc stack are made of Stainless Steel (SS) for corrosion resistance.
-
Simple Operation: Known for its low maintenance costs and "easy-to-operate" design.
| Feature | Details |
| Max Throughput | Approx. 5,700 - 6,000 Liters/Hour (depending on oil type) |
| Bowl Speed | 8,400 - 8,500 RPM |
| Motor Power | 5.5 kW or 12 kW (depending on pump configuration) |
| Drive System | Belt-driven for smooth starting and low noise |
| Type of Separation | Liquid-Liquid-Solid (Purifier) or Liquid-Solid (Clarifier) |
-
Main Unit: MAB 206 Centrifugal Separator.
-
Electric Motor: 3-Phase induction motor.
-
Pump: Built-in feed and discharge pumps (optional/standard depending on setup).
-
Tools & Accessories: Gravity discs (for adjusting to different oil densities) and a basic tool kit.
